In the competitive world of heavy machinery maintenance, the year 2025 has marked a definitive shift in procurement strategies. For decades, authorized dealers and repair shops faced a rigid dilemma when a 20-ton excavator’s main pump failed: pay the exorbitant price for an OEM (Original Equipment Manufacturer) unit or risk the machine’s integrity with a "cheap" used part.
However, the landscape has changed. Today, savvy independent repair shops from South America to Southeast Asia are increasingly opting for high-quality Chinese aftermarket hydraulic pumps, specifically the Kawasaki and Scote K3V and K5V series.
Why is this specific series of pumps driving such high volume in the aftermarket sector? As a premier supplier of excavator parts, we are diving deep into the technical and commercial reasons why these replacement pumps have become the preferred choice for distributors and maintenance professionals worldwide.
1. The Economics of Repair: Why OEM Numbers Don’t Add Up
The primary driver is, undeniably, cost-efficiency—but not in the way you might think. It is not just about being "cheaper"; it is about the Total Cost of Ownership (TCO) relative to the machine's remaining lifespan.
The K3V (e.g., K3V63, K3V112, K3V140) and K5V (e.g., K5V80, K5V140, K5V200) series are the beating hearts of the most common excavators in the 10-ton to 50-ton range. You will find them in models like the Doosan DX225, Hyundai R210, Volvo EC210, and Kobelco SK200.
By the time these machines require a main pump replacement, they often have 10,000+ hours on the clock. Installing a $6,000+ OEM pump into a machine whose resale value has depreciated significantly often makes no financial sense for the end-user.
The Aftermarket Solution:
A premium aftermarket K3V112DT pump from a top-tier Chinese manufacturer offers 95-98% of the OEM performance at 30-40% of the cost. For a repair shop, this means they can quote a competitive repair price to their customer while retaining a healthy profit margin.
2. Decoding the K3V & K5V Series: Why These Models?
_M42zsv.png)
To understand the popularity, we must look at the engineering. The Kawasaki-style swash-plate axial piston pump is the industry standard for open-circuit hydraulic systems.
K3V Series: Known for its reliability in older Tier 2 and Tier 3 machines. It features high power density and high efficiency.
K5V Series: The evolution of K3V, offering higher power density, reduced noise, and better control for modern Tier 4 machines.
The Interchangeability Factor:
One reason our aftermarket pumps are best-sellers is their universal compatibility. A single robust aftermarket K3V112DT base unit, with minor regulator adjustments or PTO (Power Take-Off) changes, can fit:
Doosan Solar 225LC-V
Volvo EC210B
Sany SY215
Hyundai R210LC-7
This versatility allows our distributors to stock fewer SKUs (Stock Keeping Units) while covering a broader range of machine models.
3. The "Quality Gap" Has Closed: Manufacturing in 2025
Five years ago, skepticism about Chinese hydraulic parts was valid. Leaking seals, poor casting, and premature wear were common issues. However, the manufacturing landscape in 2025 is unrecognizable compared to 2015.
Leading Chinese aftermarket factories now utilize the same Heat Treatment and CNC Grinding technologies as major international brands.

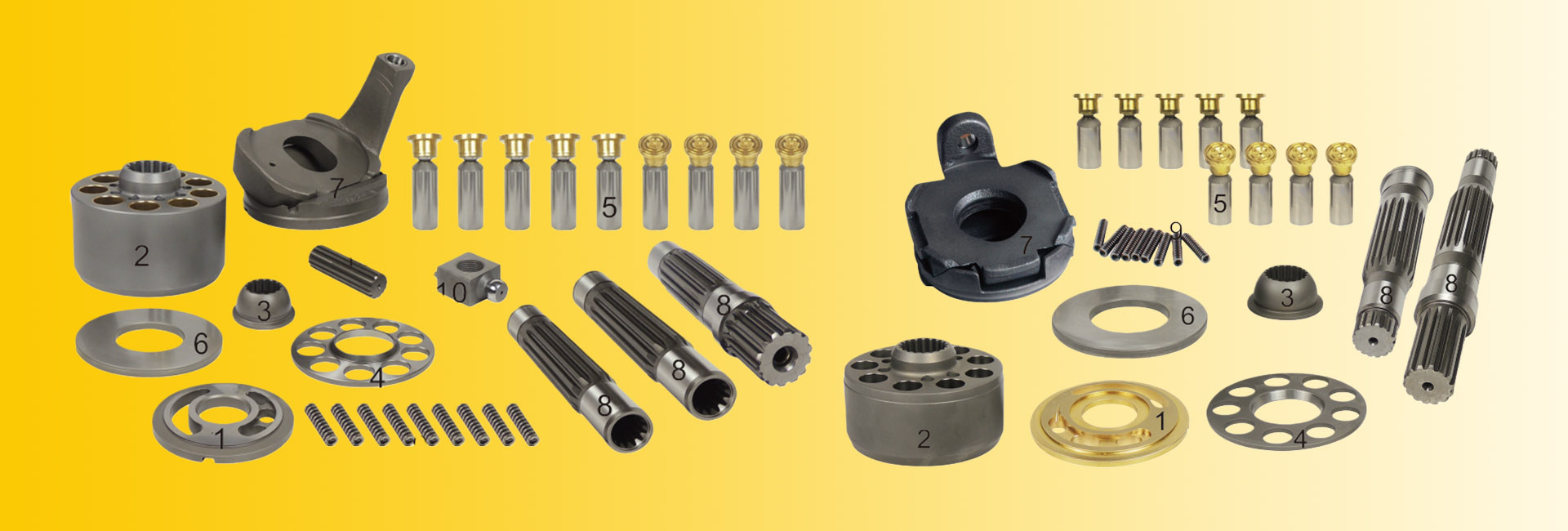

Key Manufacturing Upgrades:
Bi-Metal Cylinder Blocks: We use high-grade copper alloy fused with steel for the cylinder block, ensuring high wear resistance against the valve plate.
Piston Shoe Swaging: Advanced automated swaging machines ensure the piston shoes have the perfect clearance, reducing friction and preventing "sticking."
Sealing Technology: We exclusively use high-quality FKM (Viton) seals that can withstand high hydraulic oil temperatures (up to 120°C) without hardening or cracking.
The result? A pump that doesn't just "fit," but maintains pressure stability even under heavy digging loads.
4. Technical Performance: What the Data Says
For our B2B clients—distributors and engineers—data speaks louder than marketing. We conduct rigorous test bench simulations before any pump leaves our warehouse.
Here are the benchmarks for our Premium Aftermarket K3V/K5V Pumps:
Performance Metric | OEM Standard | Our Aftermarket Standard |
Volumetric Efficiency | > 96% | > 95% |
Rated Pressure (Continuous) | 34.3 MPa (350 bar) | 34.3 MPa (350 bar) |
Peak Pressure | 39.2 MPa (400 bar) | 38.0 MPa (390 bar) |
Noise Level (at Full Load) | ~78 dB | ~80 dB |
Life Expectancy | 12,000+ Hours | 8,000 - 10,000 Hours |
Analysis: While the life expectancy is slightly lower than OEM, the cost-per-hour of operation is significantly lower with the aftermarket option. For a machine used in general construction (rather than 24/7 mining), this trade-off is perfectly acceptable.
5. Solving the Regulator & Solenoid Headache
A common complaint with cheaper aftermarket pumps is the Regulator Control. The pump might generate pressure, but if the flow control is sluggish, the excavator feels "slow" or "jerky."
We pay special attention to the Electromagnetic Proportional Control Valve (EPPR Valve) on our K5V series. Our regulators are calibrated to match the specific flow curves of the machine's ECU.
Negative Flow Control (NFC): Critical for older Komatsu and Hyundai models.
Positive Flow Control: Tuned for modern CAT and Volvo systems.
By ensuring the regulator responds precisely to the pilot pressure, we guarantee that the "hand-feel" of the joystick remains smooth for the operator.
6. Installation & Break-in: Advice for Repair Shop
To maximize the lifespan of these aftermarket units, we advise our distributors to educate their end-users. 70% of hydraulic pump failures are due to contamination, not part defects.
Our Recommended Installation Protocol:
Flush the System: The entire hydraulic system must be cleaned. Old metal shavings from the previous failure will destroy the new pump in minutes.
Filter Change: Replace the return filter, pilot filter, and suction strainer.
Oil Analysis: Check the viscosity and cleanliness of the hydraulic fluid.
Air Bleeding: Before starting the engine, fill the pump case with clean oil and loosen the air bleed plug. Dry starts are the #1 killer of new pumps.
7. Logistics and Supply Chain Advantages
Finally, why do importers choose us? It comes down to Availability.
OEM supply chains often have lead times of 3-6 months for specific pump assemblies. In the construction world, a machine down for 3 months is a disaster.
At our facility, we maintain a rolling stock of the top 50 most common K3V and K5V assemblies.
Stock Order Lead Time: 3-5 Days
Urgent Air Freight: Delivered to your workshop (USA/Europe/Australia) in 5-7 days.
We understand that in the aftermarket business, speed is currency.
Conclusion
The stigma surrounding "Made in China" hydraulic parts is fading rapidly among professionals who understand the technical specs. The Aftermarket K3V and K5V series represent the perfect balance of performance, durability, and price.
For distributors, stocking these pumps means offering your customers a solution that saves them money while earning you a reputation for solving problems fast.
Are you ready to upgrade your inventory?
Contact our engineering team today to get the latest price list for the K3V112 and K5V140 series. Let’s keep your fleet moving.
